Welcome to QZabre, your expert in NV sensing technology.

Are you looking for scanning diamond tips? We offer integrated sensor chips with guaranteed contrast and countrate. Order here

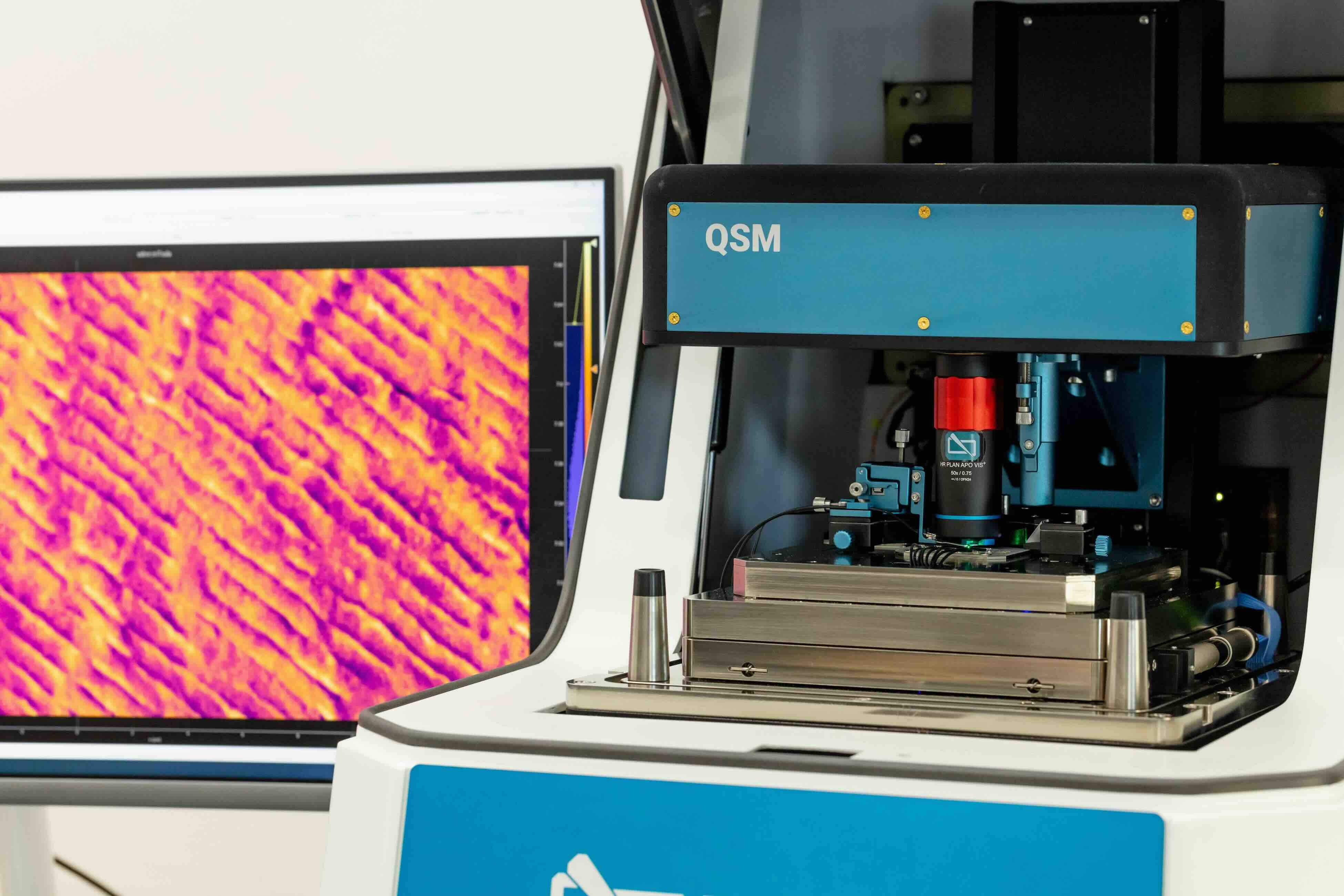

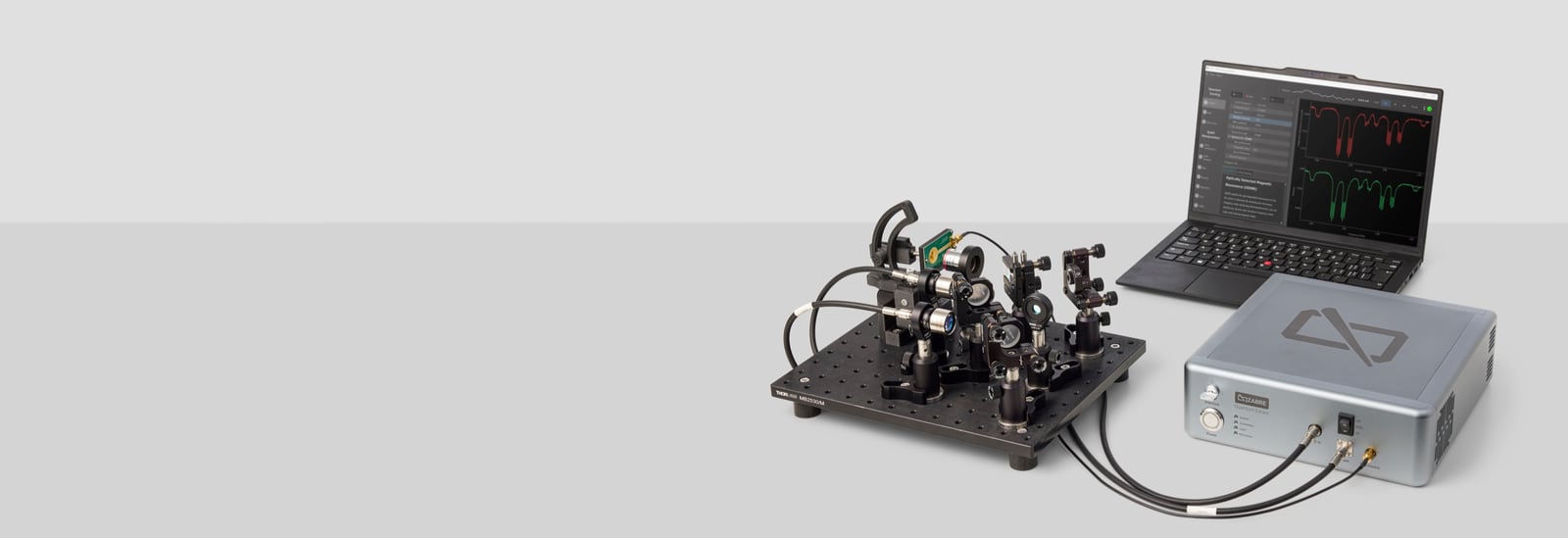

Are you more interested in a complete setup? We are working on it, stay tuned or write us for more information.

Are you interested how scanning NV technology can help you or how it works and what it is capable of? Check our background page.

We will be exhibiting at Hannover Messe, meet us at the booth, or setup a face to face meeting!

We will also be exhibiting at the 2019 International Conference on Frontiers of Characterization and Metrology for Nanoelectronics in Monterey, CA.

At a Glance

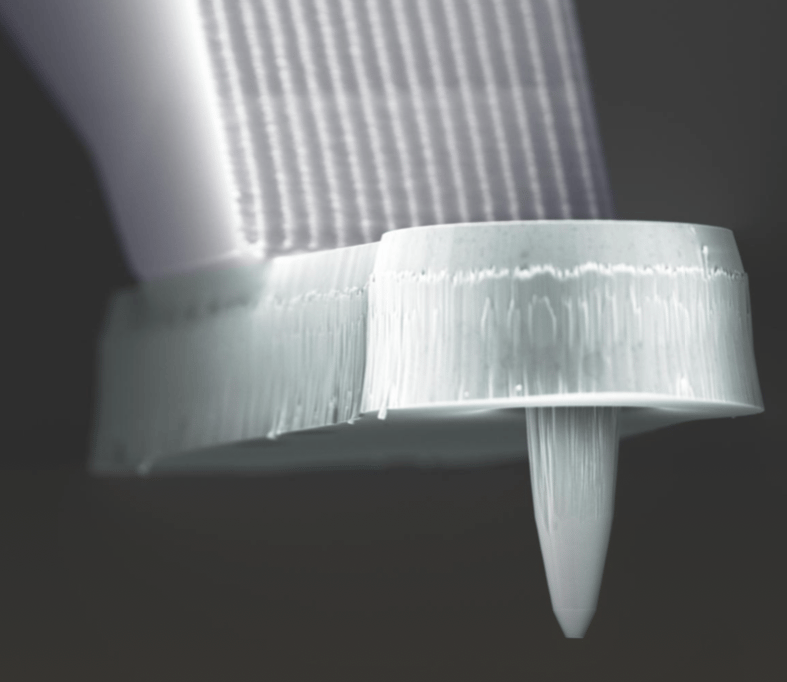

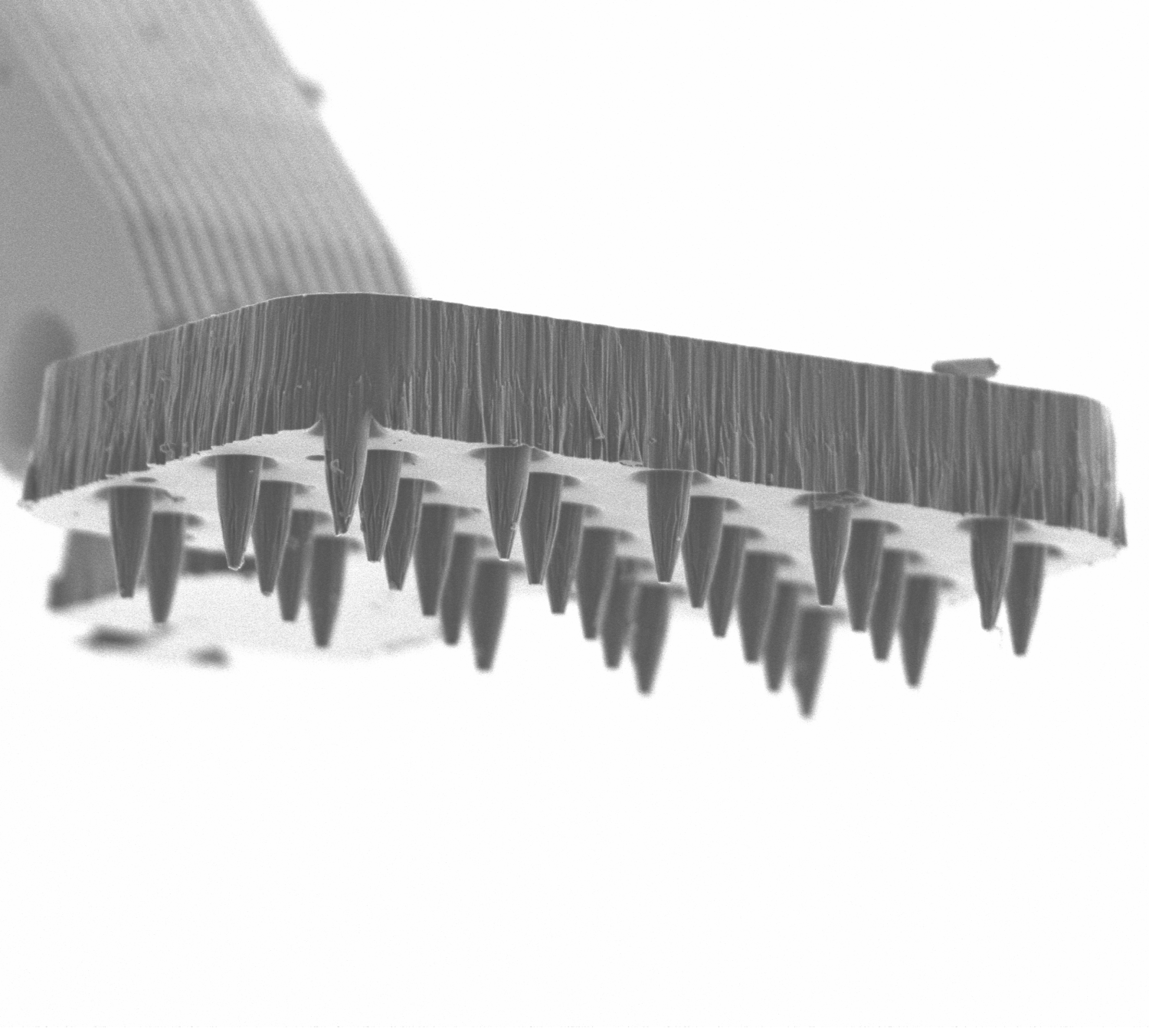

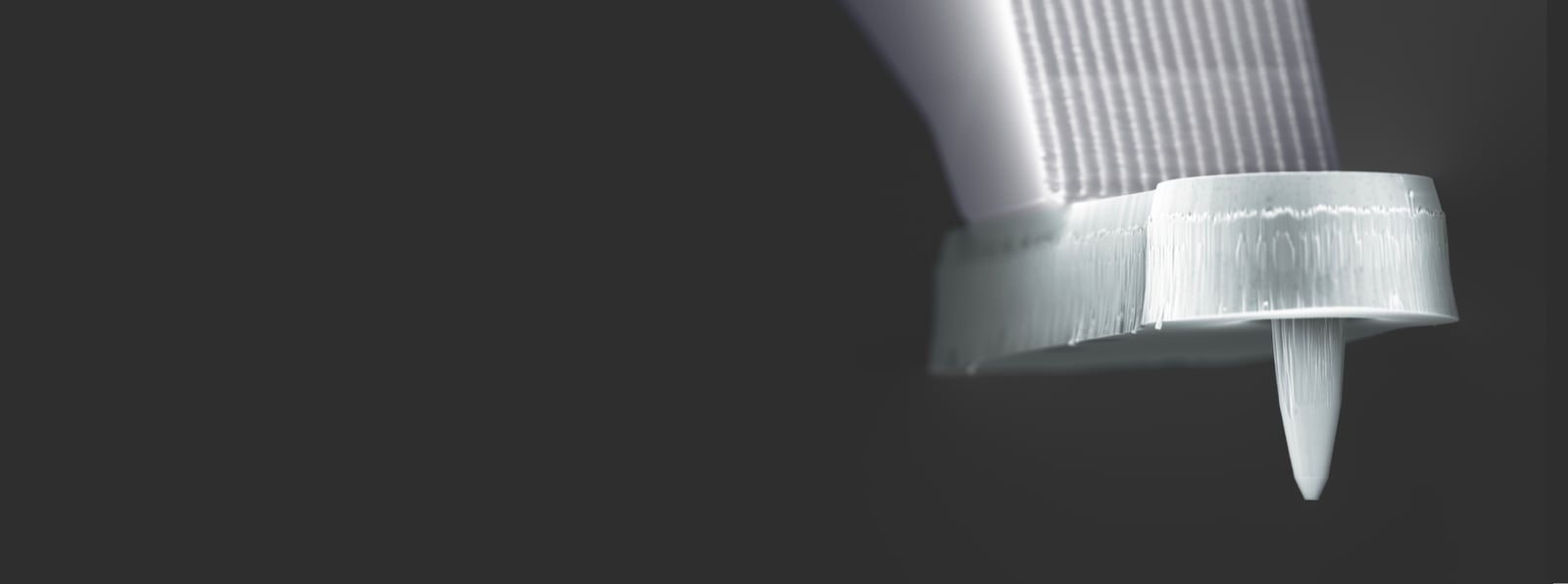

The QZabre is a unique scanning probe that enables researchers to perform NV magnetometry experiments without going through the difficulties of probe assembly and tip fabrication. At its heart, it is a high-quality diamond tip that incorporates a single nitrogen-vacancy center at the apex. The diamond tip is attached to a quartz tuning fork for precise distance control and mounted on a convenient plug-and-play sensor chip.

_DSR1071

Key Features

  • Diamond probe tip etched from high-quality, single crystal diamond
  • Single nitrogen-vacancy typically 10 nm below the tip apex
  • Feedback control of z-distance via tuning fork sensor
  • Precise control of tip tilt enables imaging resolution better than 50 nm.
  • Simple and easy chip mount
  • Compatible with the Attocube attoAFM/CFM microscope
